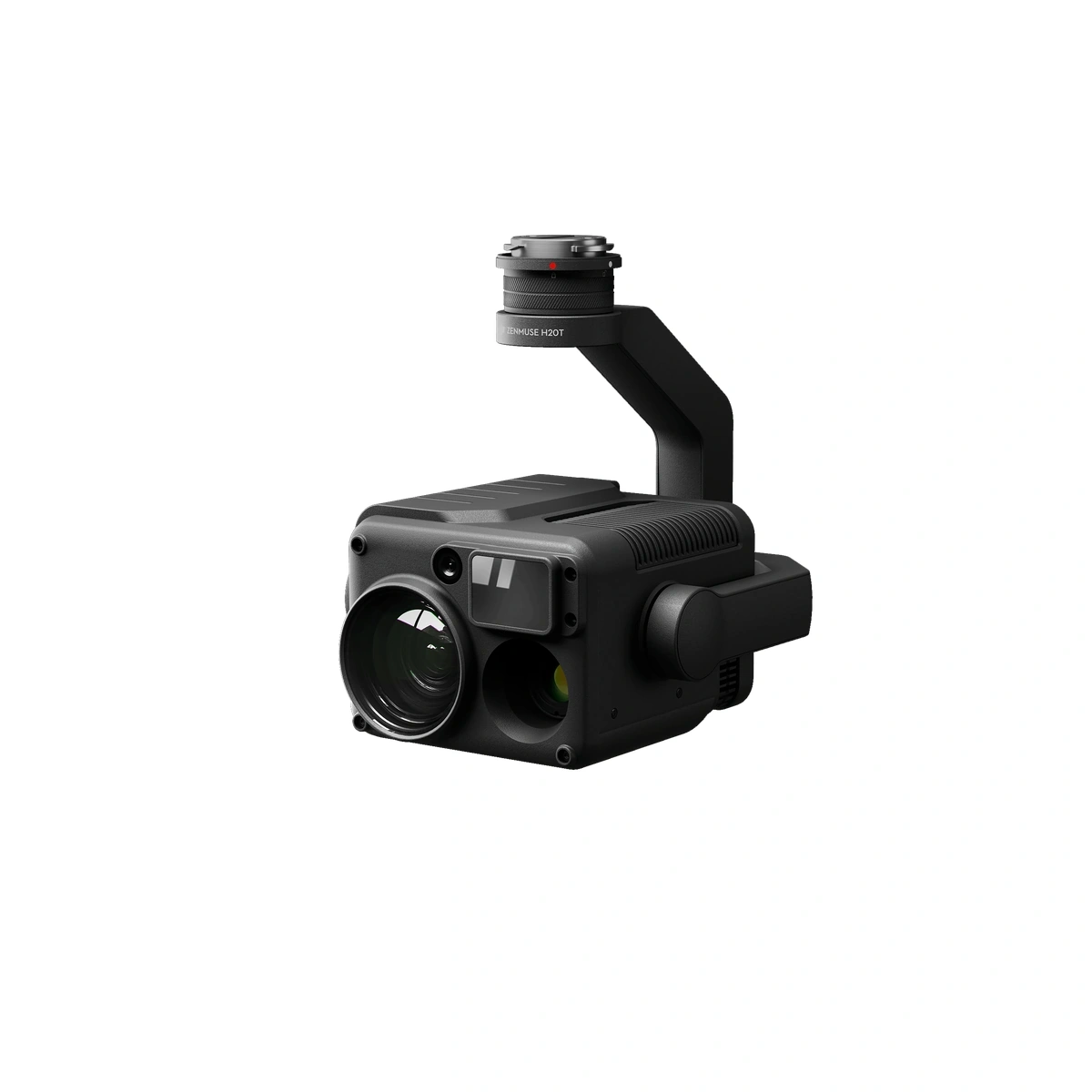

You will receive a unit of the Zenmuse H20T compatible with the following drones: Matrice 300 RTK.
DJI Part Name:
DJI Part Number (MPN):
Specs:
Weight: 828±5 g
Dimensions: 167×135×161 mm
Ingress Protection Rating: IP44
Operating Temperature: -20° to 50° C
1. Gimbal
Angular Vibration Range: ±0.01°
Controllable Range: Pitch -120° to +30°, Yaw: ±320°
Mechanical Range: Pitch: -132.5° to +42.5°, Yaw: ±330°, Roll: -90° to +60°
2. Zoom Camera
Sensor: 1/1.7″ CMOS, 20 MP
Lens: DFOV: 66.6°-4°, Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm), Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene), Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Electronic Shutter Speed: 1 ~ 1/8000 s
ISO Range: 100 – 25600
Video Resolution: 3840×2160@30fps, 1920×1080@30fps
Photo Size: 5184 × 3888
3. Wide Camera
Sensor: 1/2.3″ CMOS, 12 MP
Lens: DFOV: 82.9°, Focal length: 4.5 mm (equivalent: 24 mm), Aperture: f/2.8, Focus: 1 m to ∞
Shutter Speed: 1 ~ 1/8000
ISO Range: 100 – 25600
Video Resolution: 1920×1080@30fps
Photo Size: 4056 x 3040
4. Thermal Camera (Zenmuse H20T)
Sensor: Uncooled VOx Microbolometer
Lens: DFOV: 40.6°, Focal length: 13.5 mm (equivalent: 58 mm), Aperture: f/1.0, Focus: 5 m to ∞
Digital Zoom: 1x, 2x, 4x, 8x
Video Resolution: 640×512 @30 Hz
Image Resolution: 640×512
Image Format: R-JPEG (16 bit)
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Sensitivity (NETD): ≤50 mK @ f/1.0
Temperature Measurement Method: Spot Meter, Area Measurement
Scene Range: -40 °C to 150 °C (High Gain), -40 °C to 550 °C (Low Gain)
5. Laser Rangefinder
Wave length: 905 nm
Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy ± (0.2 m + D×0.15%) D is the distance to a vertical surface
6. Storage
Supported SD Card: MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems: FAT32 (≤ 32 GB), exFAT (> 32 GB)
