Description

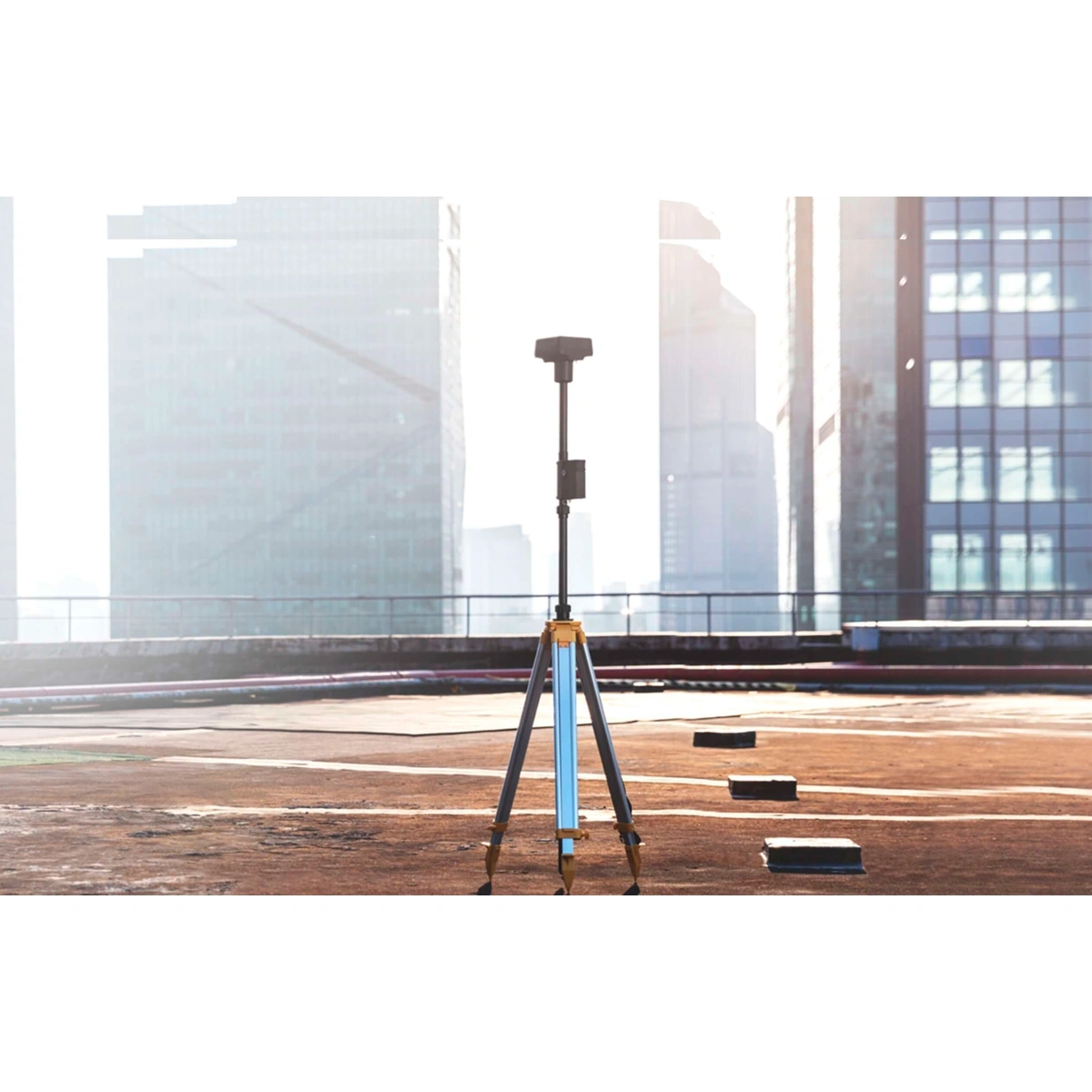

You will receive a unit of the D-RTK 2 Mobile Station (Ground Station + Tripod) compatible with the following drones: Agras T16, Phantom 4 RTK, P4 Multispectral, Matrice 210 RTK V2, Matrice 300 RTK.
DJI Part Name:
DJI Part Number (MPN):
1. GNSS Recevier
GNSS Frequency: Simultaneously GPS: L1 C/A, L2, L5 – BEIDOU: B1, B2, B3 – GLONASS: F1, F2 – Galileo: E1, E5A, E5B
Positioning Accuracy:
Single Point: Horizontal – 1.5 m(RMS) – Vertical – 3.0 m(RMS)
RTK: Horizontal – 1 cm+ 1 ppm(RMS) – Vertical – 2 cm+ 1 ppm(RMS) +1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Differential Data Format: RTCM 2.X/3.X
2. IMU
Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level
3. Physical Characteristics
Dimensions(D-RTK 2 body with extension rod): 168 mm×168 mm×1708 mm

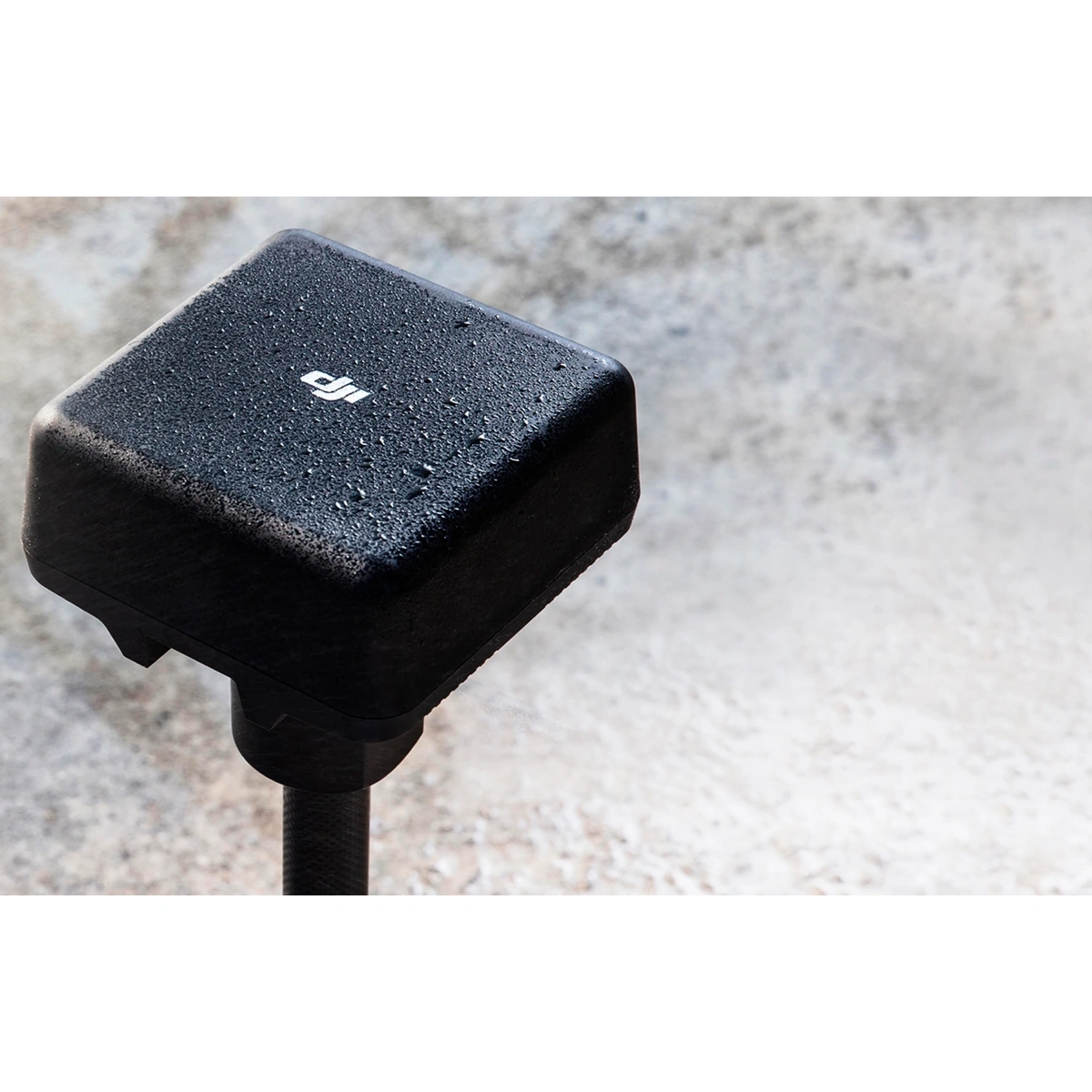

IP Rating: IP65
4. Communication and Data Storage
Data Link: OcuSync, Wi-Fi, LAN, 4G
Operating Frequency: 2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (China, United States, Australia)
EIRP: OcuSync 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm, FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm, 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm, Wi-Fi 2.4 GHz SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm, 5.8 GHz FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
5. Communication Distance:
Operating Mode 1/3: SRRC/NCC/FCC/MIC/KCC/CE: 2 km (Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)
Operating Mode 4: Between the aircraft and mobile station: NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km. Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)
Operating Mode 5: NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km (Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
Memory Capacity: 16 GB
Run Time: WB37 battery: ＞2 h, MG-12000P battery: ＞50 h
Operating Temperature : 4° to 131° F (-20° to 55° C)
